New Units » Kawasaki » Brute Force® 750 NRA OUTDOORS™
Model Quick Search

$8,949.00

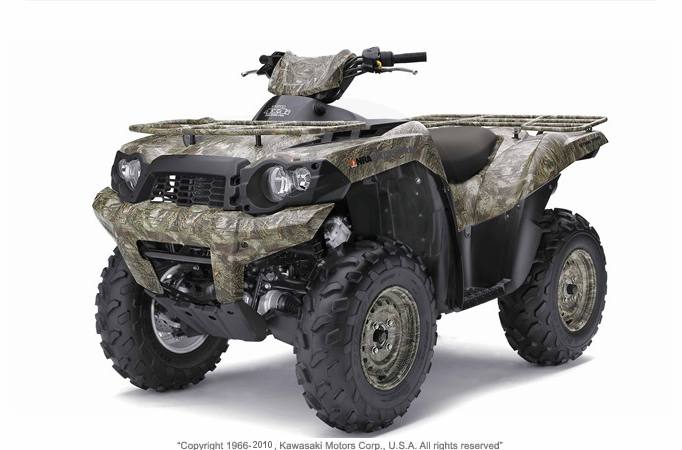

2009 Kawasaki Brute Force® 750 NRA OUTDOORS™
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Advantage® MAX-I™ HD™ camouflage
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Fuel injected 90-degree 749cc V-twin engine
    • Digital fuel Injection provides the perfect delivery throughout the rpm range with fast throttle response
    • 36mm throttle bodies are controlled by a 32-bit CPU, which monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle to help ensure the perfect air fuel mixture
    • Light throttle action due to low spring rate for the throttle return springs and ball bearing equipped throttle body for less friction
    • High-pressure fuel pump located inside tank
    • Aluminum cylinders are Electrofusion-plated for light weight, long wear and excellent heat dispersion
    • Highly efficient and compact rare-earth magnets in the generator help contribute to reduced engine width
    • Engine can be started in any gear when a brake is applied
    • Access to the air filter requires removing only one cover
    • Radiator is compact and placed high in the chassis for better protection against mud and debris
    Transmission and Powertrain
    • Fully automatic Kawasaki Automatic Powerdrive System (KAPS) continuously variable transmission (CVT) has high and low forward gears plus reverse
    • Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits rider to distribute torque equally to left and right front wheels for maximum traction
    • Air for the CVT and airbox enter from a reverse-facing snorkel located beneath the handlebars to help protect against water and mud
    • Rider can select two- or four-wheel-drive operation by pressing a button located on the handlebar
    • Cardan joints on drive shafts absorb torque fluctuations and reduce vibration
    • Plastic front and rear axle boots provide protection from debris
    Chassis
    • Double-cradle frame is made of sturdy, tubular steel
    • Chassis provides 9.7 inches of ground clearance
    • Dual A-arm front suspension feature adjustable shocks and 6.7 inches of travel
    • Independent rear suspension provides the best balance of rider comfort and handling at low to medium speeds, and provides 7.9 inches of travel
    • Upper and lower front A-arms and lower rear A-arms utilize a combination of needle bearings and ball joints for smooth suspension action, stability and excellent rider comfort
    Braking
    • Dual front disc brakes with two-piston calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power
    • Electronically controlled Kawasaki Engine Brake Control helps to slow the ATV under certain conditions
    Rugged Bodywork
    • High-gloss, scratch resistant Thermo-Plastic Olefin bodywork stays looking good longer
    • Waterproof storage box in the left front fender that compliments the easy-access storage pocket on the right side
    • Bumper design provides an effective handgrip position
    Relaxed Cockpit
    • Comfortable, upright seating position combined with the independent rear suspension for a luxurious ride
    • Rider comfort is enhanced via soft, yet firm urethane seat foam that provides lasting support for long hours in the saddle
    Additional features
    • Automotive-style instruments include digital speedometer, odometer, twin trip meters, clock, hour meter and fuel gauge and are mounted for easy viewing
    • Fitted with pre-routed tubing and mounting brackets for easy winch wiring and installation
    • Four-bulb 40-watt headlights provide maximum lighting power for nighttime rides
    • Aluminum footpegs help keep weight low
    • Trailer hitch bracket with 1,250 lbs. towing capacity is standard equipment
    • Tire and wheel design provides an integrated look with aggressive bodywork as well as superb traction
    Specifications
    • Engine: Liquid-cooled, 90-degree, four-stroke V-twin
    • Valve system: SOHC, four valves per cylinder
    • Displacement: 749cc
    • Starting system: Electric
    • Bore x stroke: 85 x 66mm
    • Compression ratio: 8.8:1
    • Fuel System: Fuel Injection; (2) 36mm Mikuni throttle bodies
    • Ignition: Digital DC-CDI
    • Transmission: Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
    • Final drive: Selectable four-wheel drive with Variable Front Differential Control, shaft
    • Frame: Double-cradle, tubular steel
    • Front suspension / wheel travel: Dual A-arm / 6.7 in.
    • Rear suspension / wheel travel: Fully Independent, dual A-arm / 7.9 in.
    • Front tires: AT25x8-12
    • Rear tires: AT25x10-12
    • Front brakes: Dual hydraulic 200mm discs with 2-piston calipers
    • Rear brake: Sealed, oil-bathed, multi-disc
    • Overall length: 86.4 in.
    • Overall width: 45.9 in.
    • Overall height: 48.5 in.
    • Wheelbase: 50.5 in.
    • Ground clearance: 9.7 in.
    • Seat height: 35.5 in.
    • Lighting: (4) 40W headlights, 5W taillight, 21W stoplight
    • Rack capacity, front / rear: 88 / 176 lbs.
    • Towing capacity: 1,250 lbs.
    • Curb weight: 652.7 lbs.
    • Fuel capacity: 5.0 gal.
    • Instruments: Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4/4x4 indicator, neutral indicator, reverse indicator, low fuel warning light, low oil warning light
    • Color choices: Advantage® MAX-I™ HD™ camouflage
    • Good Times™ Protection Plan: 12, 24, 36 or 48 months
    • Warranty: 12 Months

    Specifications

    Engine
    Engine Type 90-degree, four-stroke V-twin, SOHC, four valves per cylinder
    Displacement 749 cc
    Bore x Stroke 85 x 66 mm
    Cylinders V-twin
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection; (2) 36 mm Mikuni throttle bodies
    Starting System Electric
    Chassis
    Front Suspension Dual A-arm
    Front Travel 6.7 in.
    Front Brake Type Dual hydraulic 200mm discs with 2-piston calipers
    Front Tires AT25x8-12
    Rear Suspension Fully Independent, dual A-arm
    Rear Travel 7.9 in.
    Rear Brake Type Sealed, oil-bathed, multi-disc
    Rear Tires AT25x10-12
    Frame Double-cradle, tubular steel
    Dimensions/Capacities
    Dry Weight Curb weight: 652.7 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1,250 lbs
    Fuel Capacity 5.0 gal
    Ground Clearance 9.7 in.
    Machine Dimensions (LxWxH) 86.4 x 45.9 x 48.5 in.
    Wheelbase 50.5 in.
    Drive Train
    Final Drive Selectable four-wheel drive with Variable Front Differential Control, shaft
    Transmission Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
    General
    Speedometer Standard
    Odometer Standard
    Lighting (4) 40W headlights, 5W taillight, 21W stoplight
    Colors Advantage® MAX-I™ HD™ camouflage
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Brute Force® 750 NRA OUTDOORS™
    Style Utility
    MSRP* $8,949.00
    Chassis
    Front Suspension Dual A-arm
    Front Travel 6.7 in.
    Front Brake Type Dual hydraulic 200mm discs with 2-piston calipers
    Front Tires AT25x8-12
    Rear Suspension Fully Independent, dual A-arm
    Rear Travel 7.9 in.
    Rear Brake Type Sealed, oil-bathed, multi-disc
    Rear Tires AT25x10-12
    Frame Double-cradle, tubular steel
    Dimensions/Capacities
    Dry Weight Curb weight: 652.7 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1,250 lbs
    Fuel Capacity 5.0 gal
    Ground Clearance 9.7 in.
    Machine Dimensions (LxWxH) 86.4 x 45.9 x 48.5 in.
    Wheelbase 50.5 in.
    Drive Train
    Drive Train
    Final Drive Selectable four-wheel drive with Variable Front Differential Control, shaft
    Transmission Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
    Engine
    Engine Type 90-degree, four-stroke V-twin, SOHC, four valves per cylinder
    Displacement 749 cc
    Bore x Stroke 85 x 66 mm
    Cylinders V-twin
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection; (2) 36 mm Mikuni throttle bodies
    Starting System Electric
    Alternator
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Lighting (4) 40W headlights, 5W taillight, 21W stoplight
    Colors Advantage® MAX-I™ HD™ camouflage
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months
