New Units » Kawasaki » Brute Force® 650 4x4 (Camo)
Model Quick Search

$7,249.00

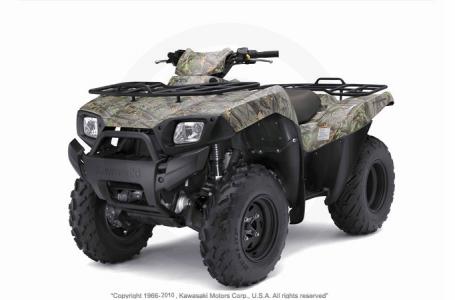

2009 Kawasaki Brute Force® 650 4x4 (Camo)
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
REALTREE™ Hardwoods Green® HD™
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    633cc Liquid-Cooled, Four-Stroke V-Twin Engine
    • Kawasaki’s original V-twin engine
    • 90-degree, V-twin engine with four-valves per cylinder produces massive torque yet is exceptionally smooth running
    • Electronically managed Kawasaki Engine Brake Control system helps to slow the ATV under certain conditions
    Transmission and Powertrain
    • Fully automatic Kawasaki Automatic Powerdrive System (KAPS) continuously variable transmission (CVT) has high and low forward gears plus reverse
    • Selectable four-wheel or two-wheel drive
    • The limited-slip front differential permits tight and easy turning
    • Rider can utilize the Variable Front Differential Control for maximum traction on difficult terrain
    Brakes
    • Dual-piston caliper front disc brakes provide aggressive stopping power
    • The industry’s original sealed, oil-bathed, multi-disc rear braking system
    • An integrated part of the shaft drive, the virtually maintenance-free rear braking system is protected from mud, dust and debris
    Chassis
    • Tough and rugged body style
    • Aluminum swingarm is sturdy and lightweight, and the shock absorber has adjustable preload
    • MacPherson strut front suspension provides a smooth, comfortable ride
    • Full-size floorboards are comfortable and help protect the rider’s feet from mud and debris
    Amenities
    • Cat-eye headlights add to its clean and aggressive look
    • A digital instrument panel provides the rider important information at a glance
    • Front and rear steel cargo racks can carry a combined weight of 264 pounds
    • It can tow 1,250 pounds
    • Standard winch-mount can accommodate a 3000-pound capacity winch from Warn or Superwinch
    Specifications
    • Engine: Four-stroke, V-twin, liquid-cooled, SOHC, four-valve
    • Displacement: 633cc
    • Starting system: Electric with recoil back up
    • Bore x stroke: 80 x 63mm
    • Compression ratio: 9.9:1
    • Carburetion: (2) Keihin CVKR-D32
    • Ignition: DC-CDI
    • Transmission: Dual-range CVT plus reverse with Kawasaki Engine Brake Control
    • Final drive: 2x4 / 4x4 shaft
    • Frame: Double cradle, tubular steel
    • Front suspension / wheel travel: MacPherson / 6.7 in.
    • Rear suspension / wheel travel: Aluminum swingarm and single shock / 7.2 in.
    • Front tires: AT25x8-12
    • Rear tires: AT25x10-12
    • Front brakes: (2) Dual-piston disc
    • Rear brake: Sealed, oil-bathed, multi-disc
    • Overall length: 86.0 in.
    • Overall width: 47.7 in.
    • Wheelbase: 50.9 in.
    • Ground clearance: At center of chassis, 9.0 / at rear axle, 7.3 in.
    • Seat height: 33.9 in.
    • Lighting, headlights: (2) 45-watt headlights, taillight, brake light
    • Total rack capacity: 264 lbs.
    • Towing capacity: 1,250 lbs.
    • Curb weight: 648.3 lbs.
    • Fuel capacity: 4.8 gal.
    • Instruments: Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light
    • Color choices: REALTREE™ Hardwoods Green® HD™
    • Good Times™ Protection Plan: 12, 24, 36 or 48 months
    • Warranty: 12 Months

    Specifications

    Engine
    Engine Type Four-stroke, V-twin, SOHC, four-valve
    Displacement 633 cc
    Bore x Stroke 80 x 63 mm
    Cylinders V-twin
    Engine Cooling Liquid-cooled
    Fuel System (2) Keihin CVKR-D32
    Starting System Electric with recoil back up
    Chassis
    Front Suspension MacPherson
    Front Travel 6.7 in.
    Front Brake Type (2) Dual-piston disc
    Front Tires AT25x8-12
    Rear Suspension Aluminum swingarm and single shock
    Rear Travel 7.2 in.
    Rear Brake Type Sealed, oil-bathed, multi-disc
    Rear Tires AT25x10-12
    Frame Double cradle, tubular steel
    Dimensions/Capacities
    Dry Weight Curb weight: 648.3 lbs
    Front Rack Capacity Total rack capacity: 264 lbs
    Rear Rack Capacity Total rack capacity: 264 lbs
    Towing Capacity 1,250 lbs
    Fuel Capacity 4.8 gal
    Ground Clearance At center of chassis: 9.0 in.; At rear axle: 7.3 in.
    Machine Dimensions (LxWxH) 86.0 x 47.7 x 33.9 in. (seat height)
    Wheelbase 50.9 in.
    Drive Train
    Drive Train Final drive: 2x4 / 4x4 shaft
    Transmission Dual-range CVT plus reverse with Kawasaki Engine Brake Control
    General
    Speedometer Standard
    Odometer Standard
    Lighting (2) 45-watt headlights, taillight, brake light
    Colors REALTREE™ Hardwoods Green® HD™
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Brute Force® 650 4x4 (Camo)
    Style Utility
    MSRP* $7,249.00
    Chassis
    Front Suspension MacPherson
    Front Travel 6.7 in.
    Front Brake Type (2) Dual-piston disc
    Front Tires AT25x8-12
    Rear Suspension Aluminum swingarm and single shock
    Rear Travel 7.2 in.
    Rear Brake Type Sealed, oil-bathed, multi-disc
    Rear Tires AT25x10-12
    Frame Double cradle, tubular steel
    Dimensions/Capacities
    Dry Weight Curb weight: 648.3 lbs
    Front Rack Capacity Total rack capacity: 264 lbs
    Rear Rack Capacity Total rack capacity: 264 lbs
    Towing Capacity 1,250 lbs
    Fuel Capacity 4.8 gal
    Ground Clearance At center of chassis: 9.0 in.; At rear axle: 7.3 in.
    Machine Dimensions (LxWxH) 86.0 x 47.7 x 33.9 in. (seat height)
    Wheelbase 50.9 in.
    Drive Train
    Drive Train Final drive: 2x4 / 4x4 shaft
    Final Drive
    Transmission Dual-range CVT plus reverse with Kawasaki Engine Brake Control
    Engine
    Engine Type Four-stroke, V-twin, SOHC, four-valve
    Displacement 633 cc
    Bore x Stroke 80 x 63 mm
    Cylinders V-twin
    Engine Cooling Liquid-cooled
    Fuel System (2) Keihin CVKR-D32
    Starting System Electric with recoil back up
    Alternator
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Lighting (2) 45-watt headlights, taillight, brake light
    Colors REALTREE™ Hardwoods Green® HD™
    Warranty Warranty: 12 Months; Good Times™ Protection Plan: 12, 24, 36 or 48 months
